Basic - How to do stock take using stock take by segment

Basic - How to do stock take using stock take by segment

1.0 What is Stock Take

Stock take is the process of inventory checking for physical verification of the quantity and conditions of the items that are stored in the outlet or warehouse. This may be done to provide an audit of the existing stock and the source of stock discrepancy information.


  1. Things to take notes before Stock Take

  1. Make sure there are no pending transactions such as sales, transfers, purchase orders or returns, receiving, and adjustments
  2. All data had been fully synced up for stock take outlet.



2.0 What is Stock Take by Segment

Stock take by segment is a function that allows user to do stock take by brand, batch or even location of the inventory. You may assign some segments for different staff to do stock take-by segment so that multiple stock take for different brands or locations of the inventory can be done at the same time.

This function also helps for outlets, especially FnB that are doing stock take for same inventory items frequently (i.e every day after EOD) where they just use back the same stock take segment rather than need to create back the the item list every time stock take need to be done, which is very time consuming and there risks of some items might be left out due to human error.

3.0 How to Create a Profile for Stock Take for Segment

Before you can do stock take by segment, you need to create a stock take by segment profile. This will allow you to reuse the same profile each time you want to do the stock take for the same inventory items.

  1. In Xilnex Classic, go to Inventory at the top menu and find Stock Take by Segment Profile.

A screenshot of a calculatorAI-generated content may be incorrect.

Alternatively, you can also use the search bar and search for stock take by segment profile.

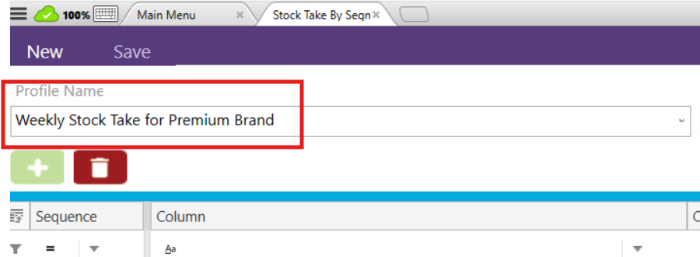

  1. Keyin the name for the profile

A screenshot of a computerAI-generated content may be incorrect.

A screenshot of a computerAI-generated content may be incorrect.

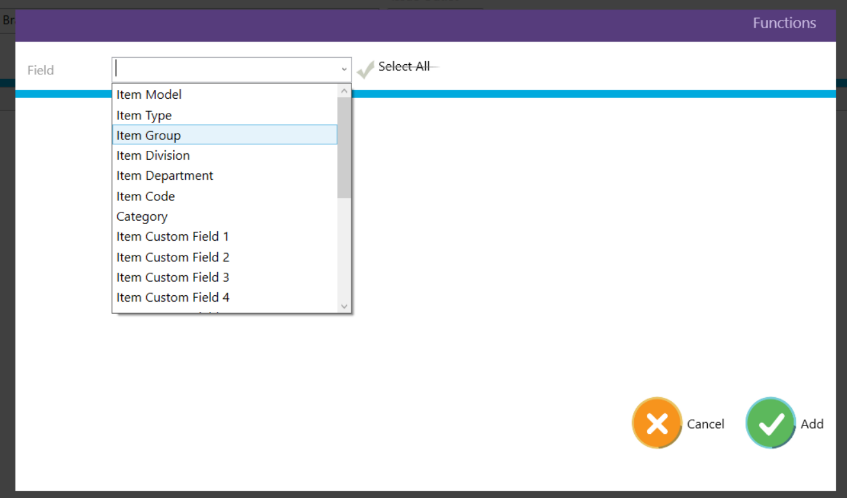

  1. Click on the + button, then a pop-up message will show you to choose all relevant items that you want to include for this stock take segment.

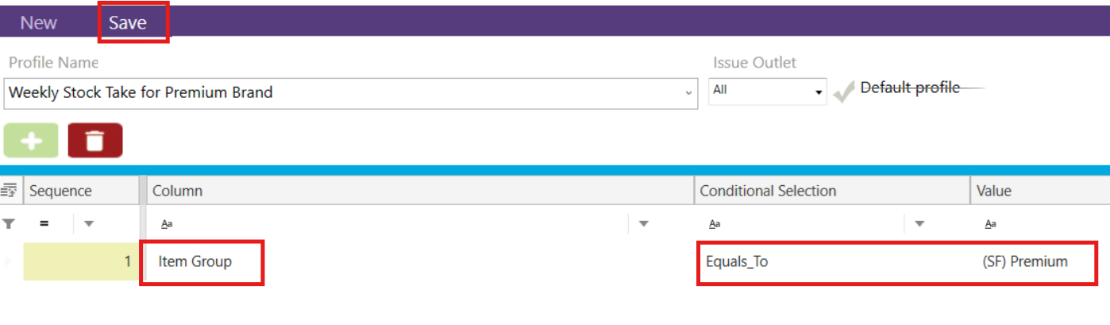

  1. After you have done selecting the relevant items, click Save at the top to save and create the profile.
  1. Example: for this profile, it will include all items under group “(SF) Premium”

A screenshot of a computerAI-generated content may be incorrect.



4.0 How to do Stock Take using the Stock Take by Segment Profile

After you are done creating the profile for Stock Take by Segment from the previous step, you may use it in any stock take session that you want.

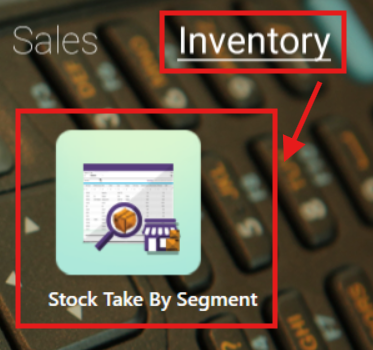

  1. Go to Inventory, and find Stock Take by Segment

A screenshot of a calculatorAI-generated content may be incorrect.

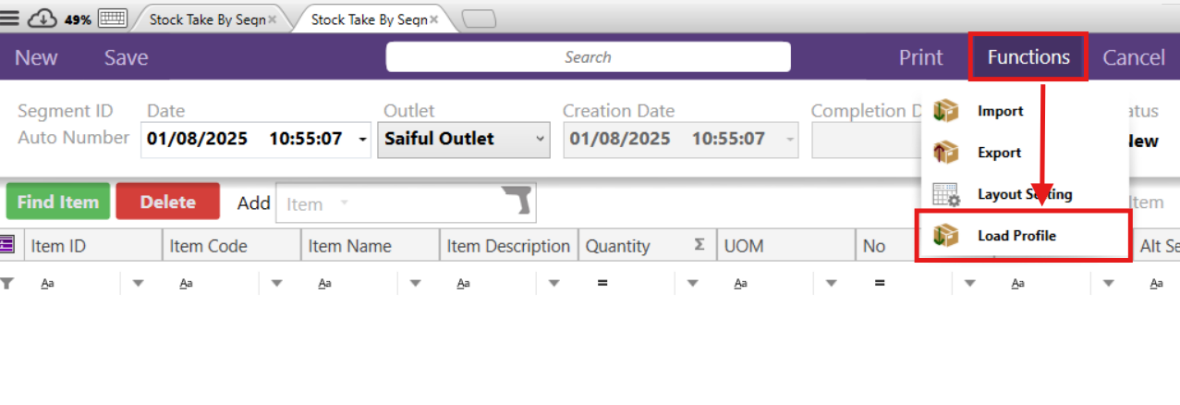

  1. Click at the Functions at the top right of the screen and click on Load ProfileA screenshot of a computerAI-generated content may be incorrect.

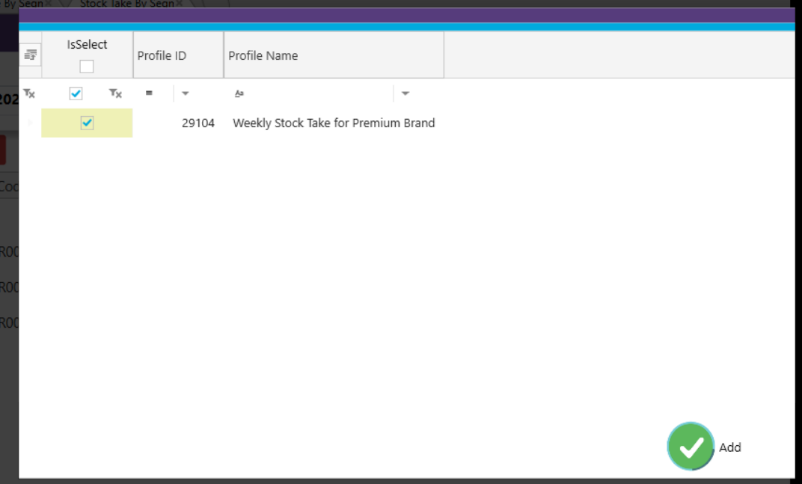

  1. Select the related profile that you created for this stock take session, and click on Add

A screenshot of a computerAI-generated content may be incorrect.

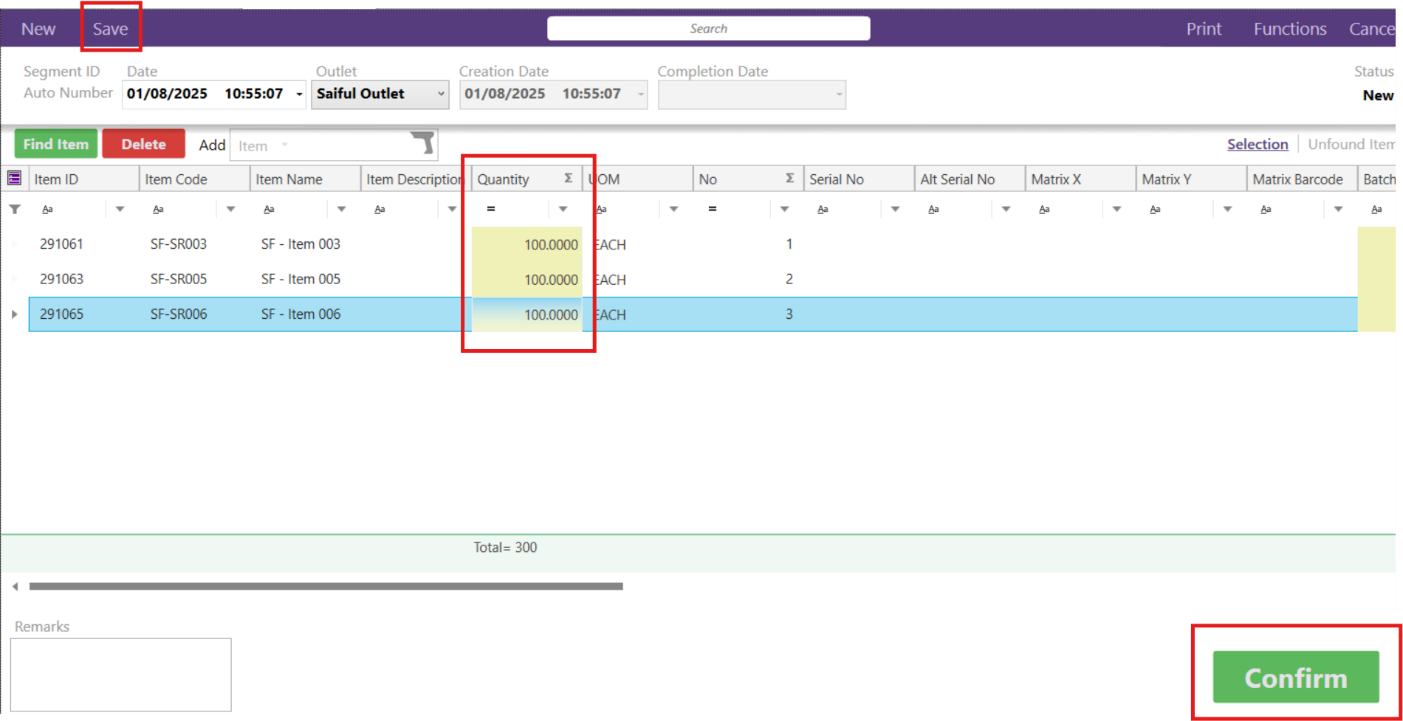

  1. All the relevant items will be loaded, and you may proceed to key in quantity. After done, you may
  1. Click on Save button to save it (if you intend to double check and do any amendments later)
  2. Click on the Confirm button if you have already finalized the quantity.

If you click on the Confirm button, the stock take by segment record will be posted to Stock Take.

A screenshot of a computerAI-generated content may be incorrect.




5.0 How to Post the Stock Take by Segment to Stock Take

After you have confirmed the Stock Take by Segment from the previous step, you may continue the next step which will post all the quantity and related items to the Stock Take record.

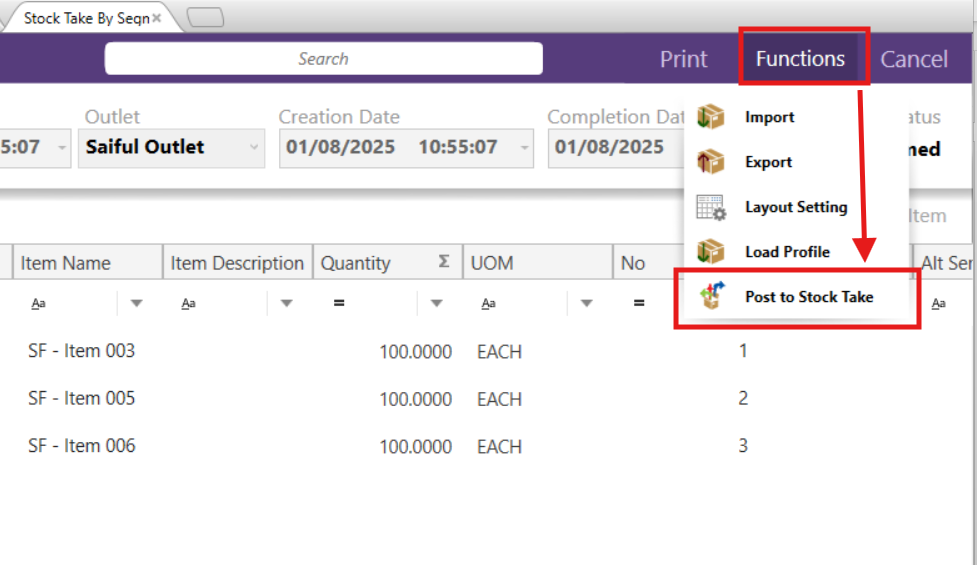

  1. On the Stock Take by Segment (from previous step), click on Advance and Post to Stock Take.

Note: Post to Stock Take will only appear after you confirm the stock take by segment.

A screenshot of a computerAI-generated content may be incorrect.


  1. All the items and information (quantity) from the Stock Take by Segment process will be displayed on Stock Take screen.

You can click Save button to save this Stock Take session, and the status will be updated to Pending. Once saved, you are still able to amend the quantity (Physical Quantity column).


Note: Stock Take screen will display all items in the system. You may filter the items by filtering Physical Quantity (select non-blanks)

A screenshot of a computerAI-generated content may be incorrect.

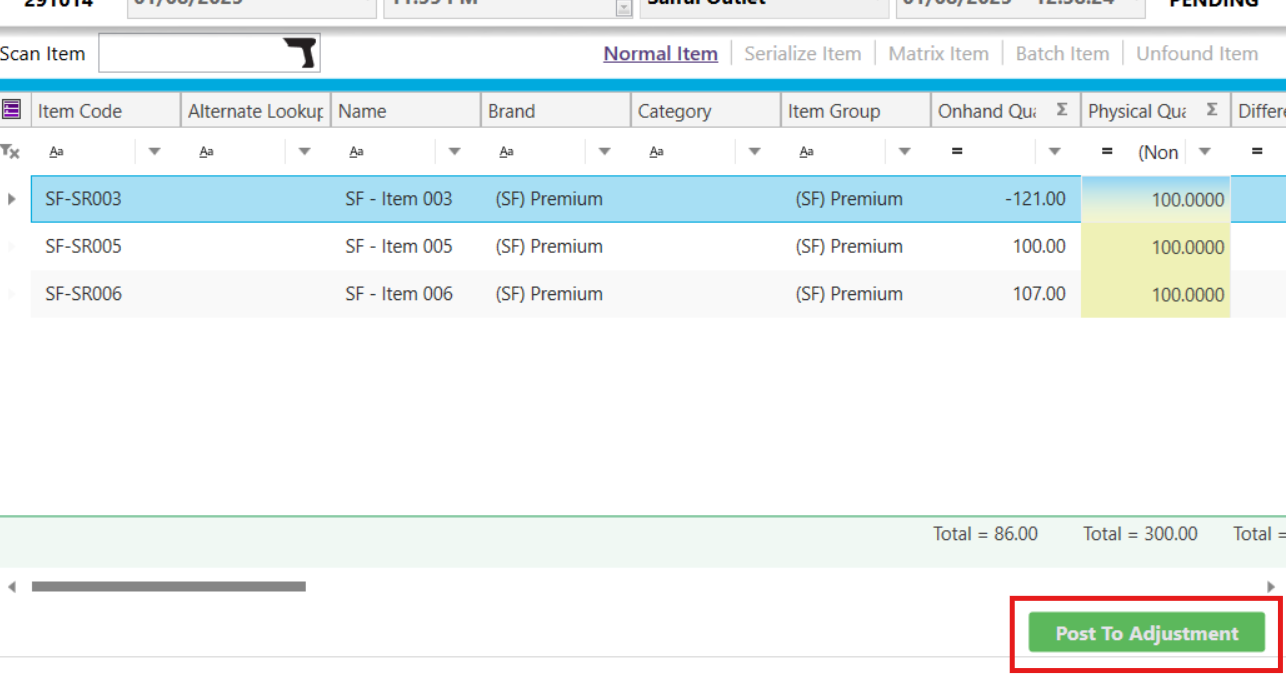

  1. Once you have finalized everything, you can proceed to click on the Post to Adjustment.

A screenshot of a computerAI-generated content may be incorrect.

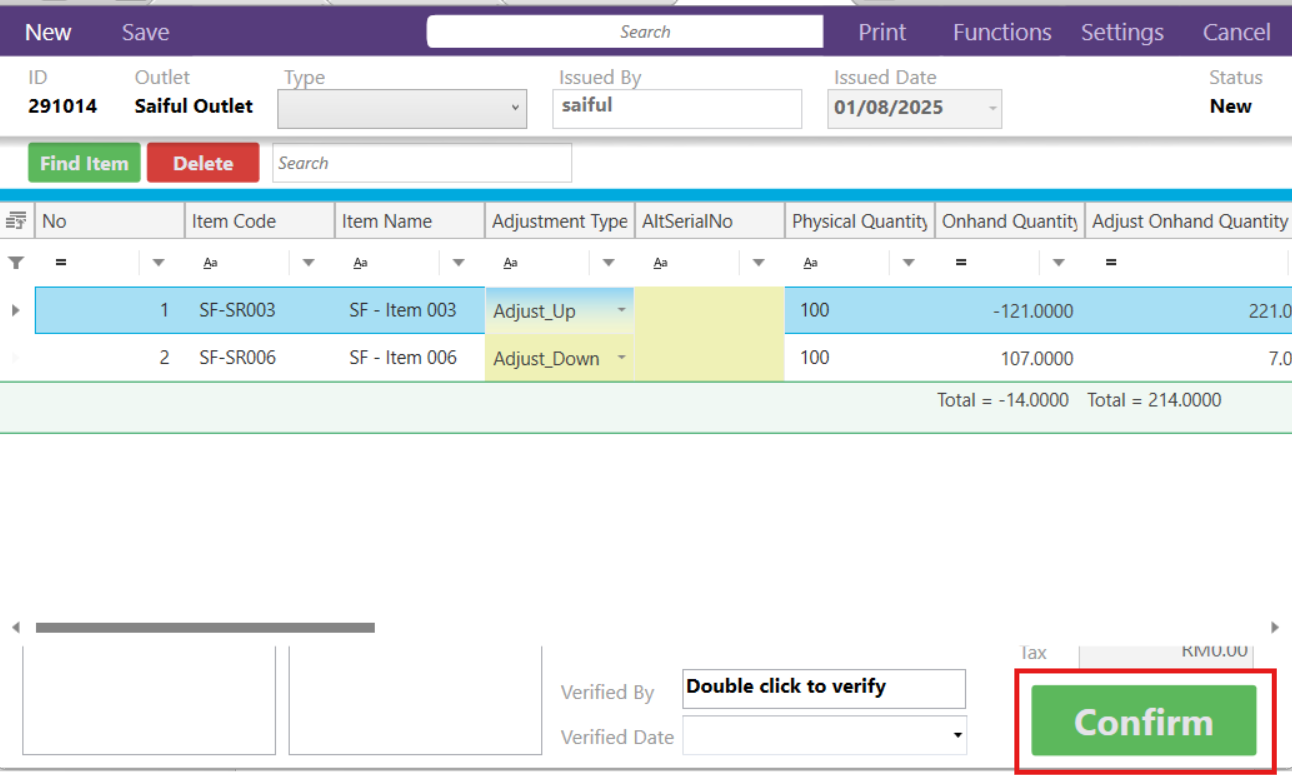

  1. Stock Adjustment will show all the information from the previous Stock Take process.

To apply/update the quantity from the Stock Take to your inventory, click on the Confirm button.


Note: Stock Adjustment will only show the items that are having difference between Physical and OnHand quantity.

A screenshot of a computerAI-generated content may be incorrect.
