Intermediate - How to Configure a Calculated Field in Printing Format
Calculated Field Usage
Calculated Fields are a custom field in the printing format editor that allows users to be able to customize fields to have certain values for example if user wants to be able to have a Subtotal of a sale to show with the discount amount of a sales.
They may use this approach to show combine two fields into one field to show the calculated total value

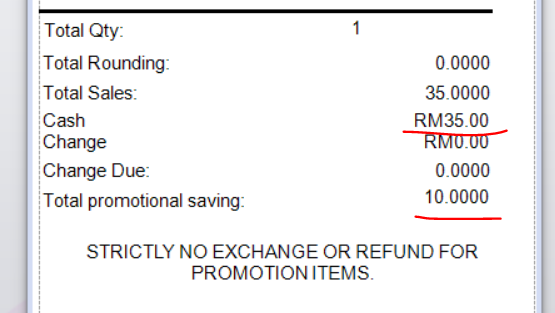

1.0.1 Example POS receipt format
From the following POS receipt format, example you would like to configure the Total Sales to show the original value with the discount as well.
You may user the following in the format below.
1.1 Configurating the Calculated Field

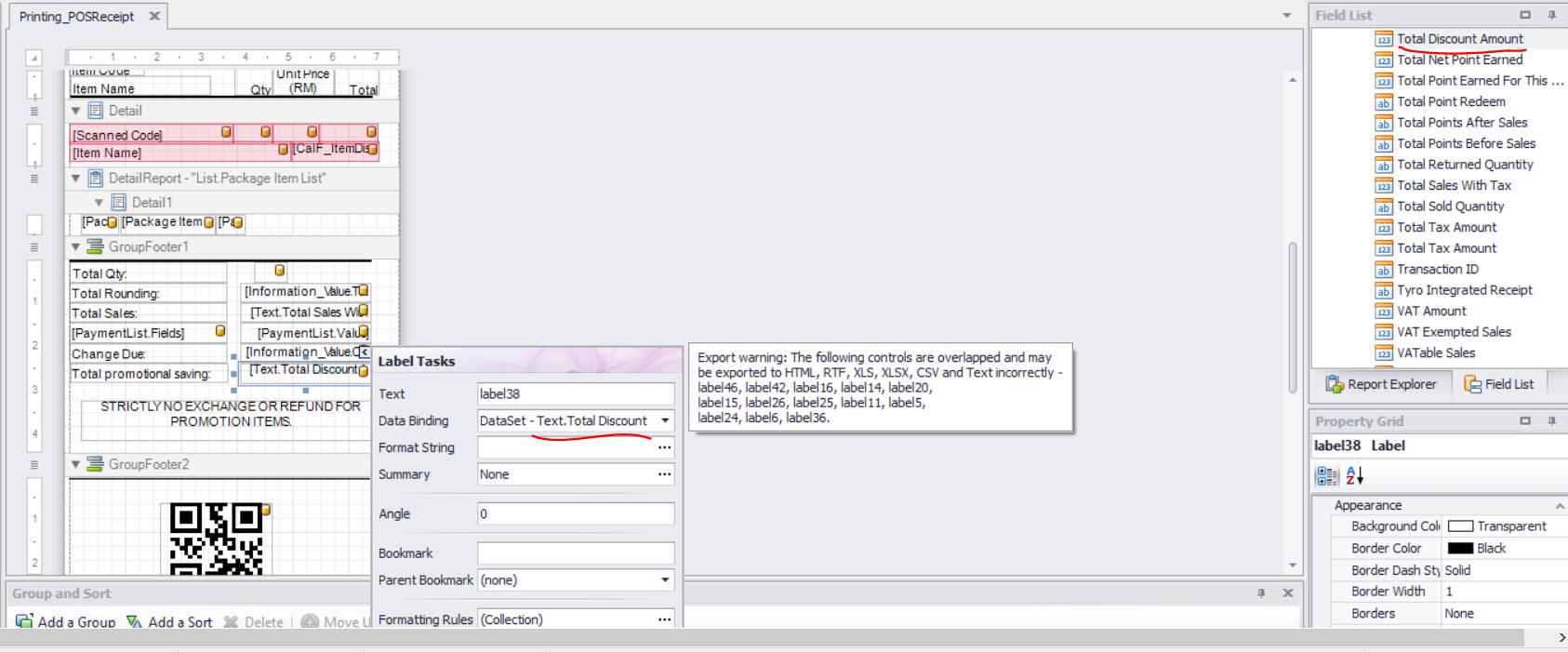

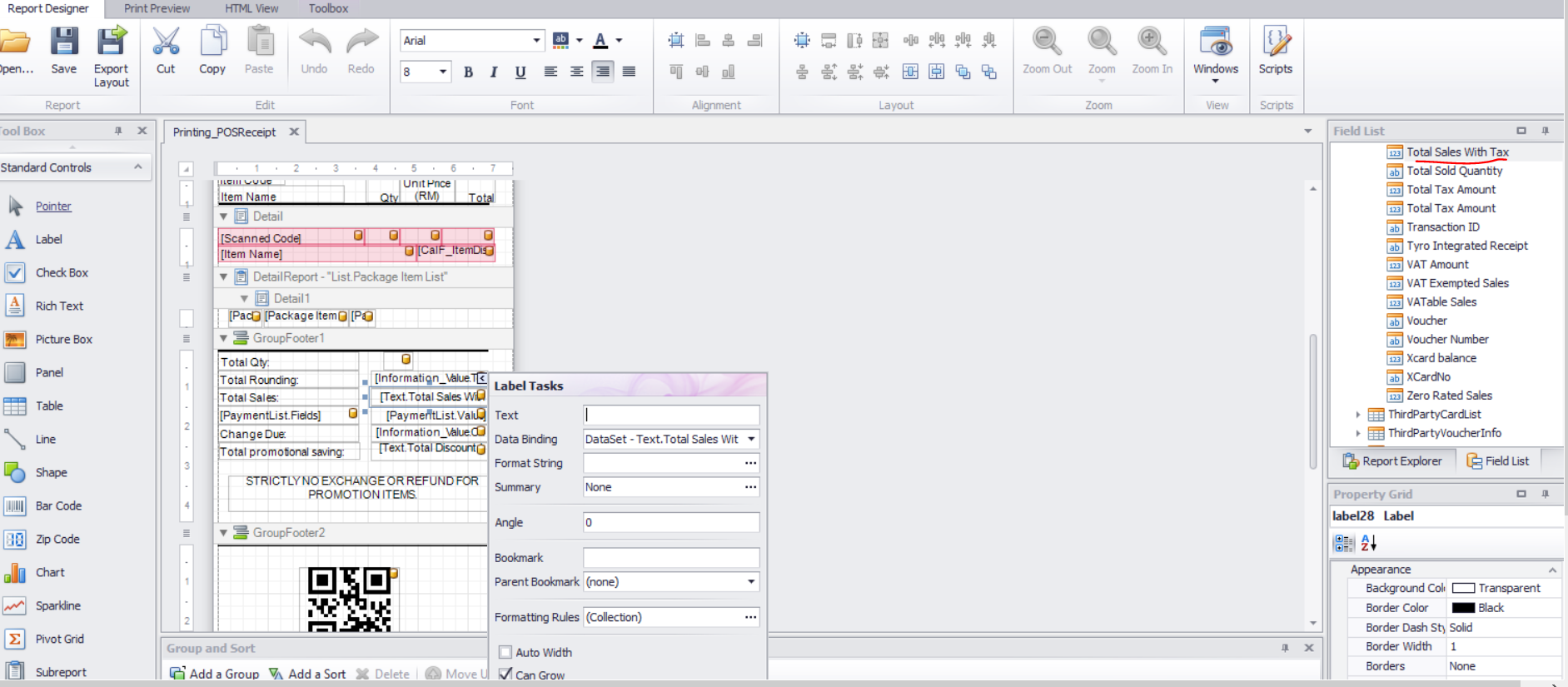

In the printing format find the fields in the screenshot which in this case should be the two below:
“Total Sales with Tax”
“Total Discount Amount”
- So the formula in this case we want to use is “Total Sales with Tax” + “Total Discount Amount”
You will then need to navigate to the data member of this fields which are under “Text”. - This can be accessed on the right pane from “fields list”

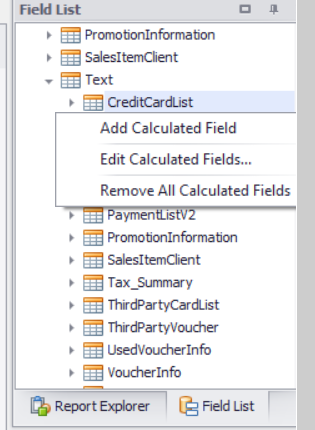

- Right click on an area under the Text Data Member and select the add calculated field option and click on it

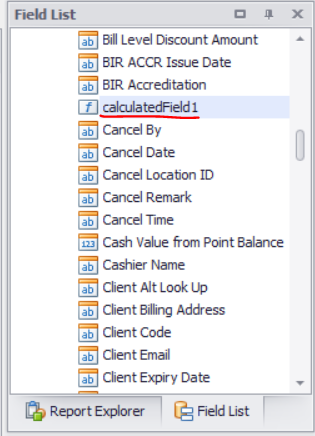

- By default, the calculated field will always have a default name of “calculatedField#
- From there on you may select the calculated field and then right click on it and select the Edit expression Option as below

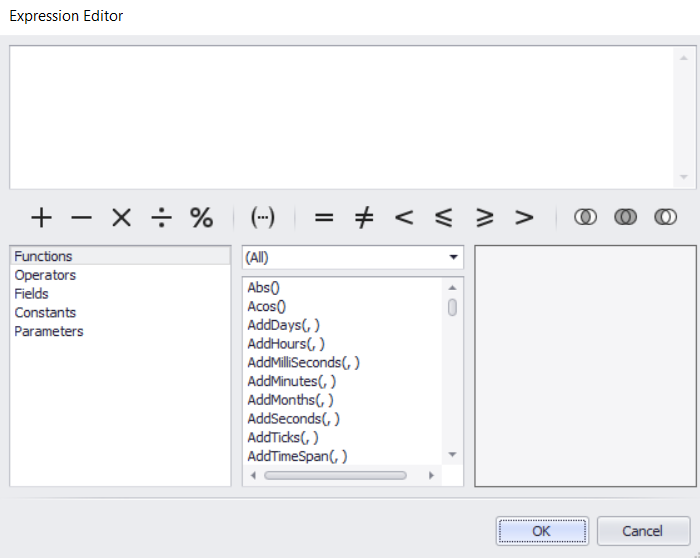

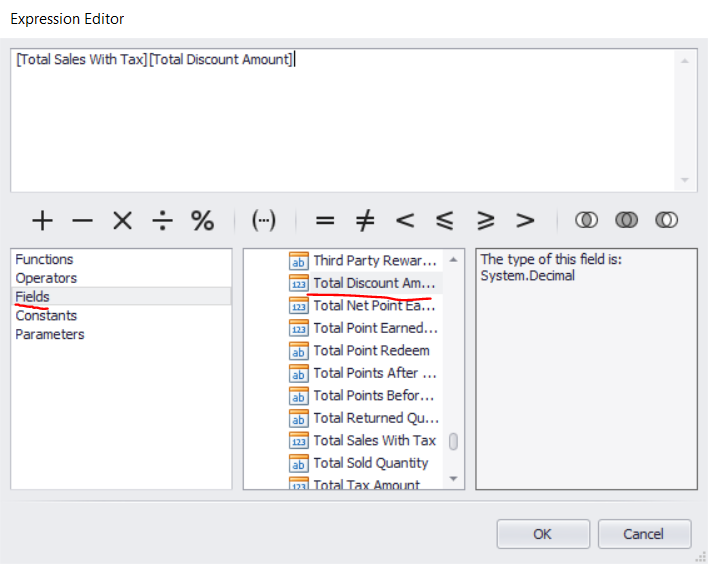

- This should open the expression editor above and you may start keying in the required fields for the formula

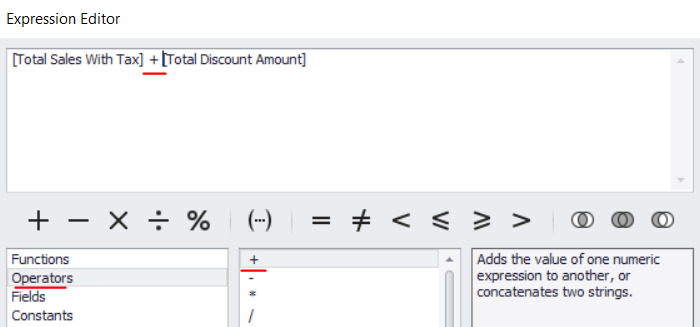

- Navigate to the fields section and then select the two fields required from earlier
- Add the operator of “+” in between the two fields
- Then click on the Ok button below to finalize the new field

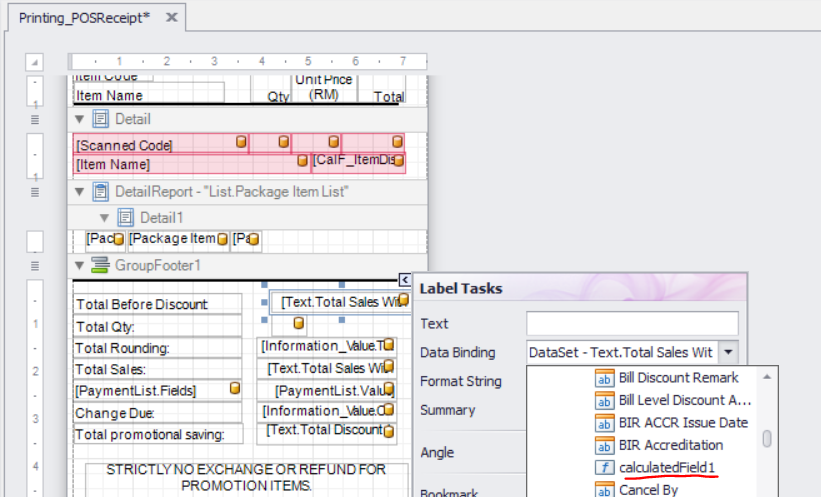

- You may then add a new label in the format to use the following calculated field and then save the whole printing format to finalize the changes

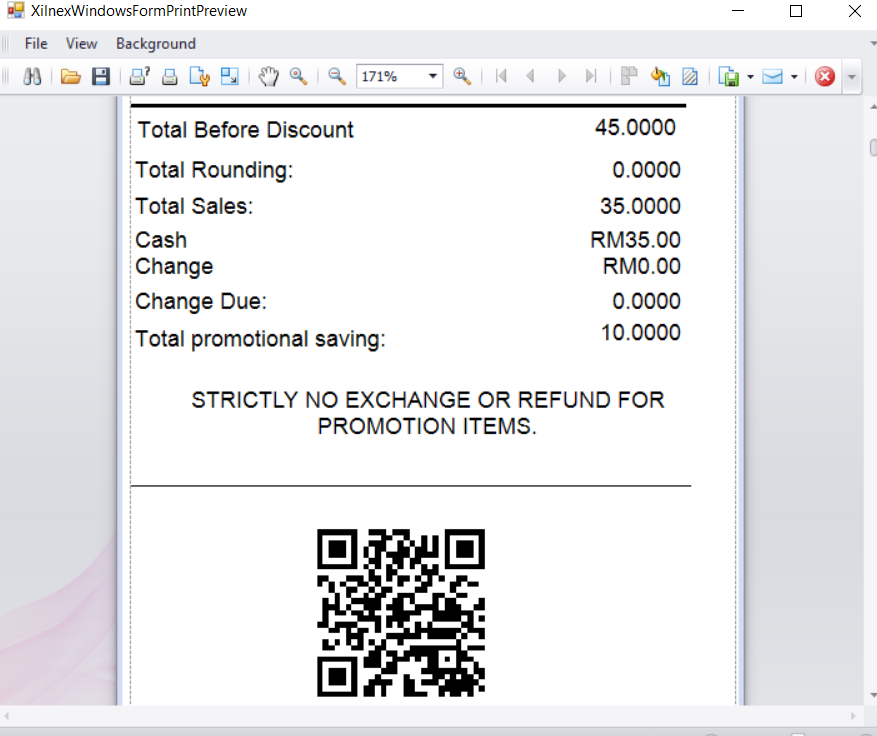

- The results will be as the following below
