Managing OAuth Client Credentials
Overview
Xilnex Auth implements the OAuth 2.0 protocol to govern service-to-service authorization. Client credentials serve as the authentication identity for backend services, enabling them to authorize, or be authorized by, other services within the platform.
Each set of client credentials is scoped to a single service and must be associated with a Project. A Project acts as an organizational container and may hold multiple sets of client credentials.

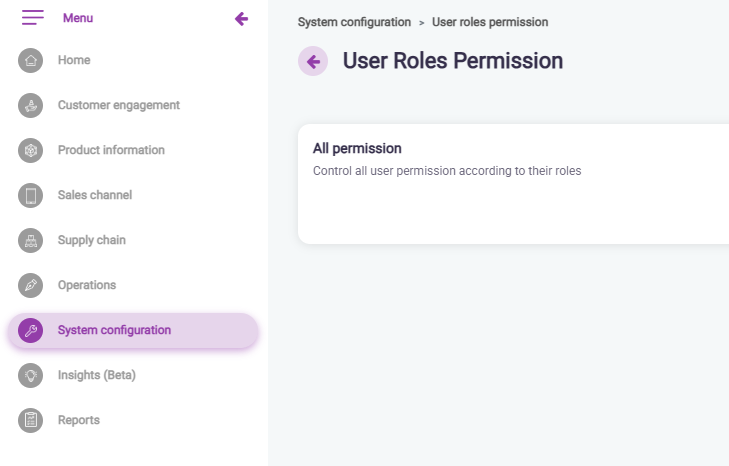

Before accessing the OAuth Client Configuration, ensure the appropriate role permission has been granted by your system administrator, Click here to see how.
Create New OAuth Client

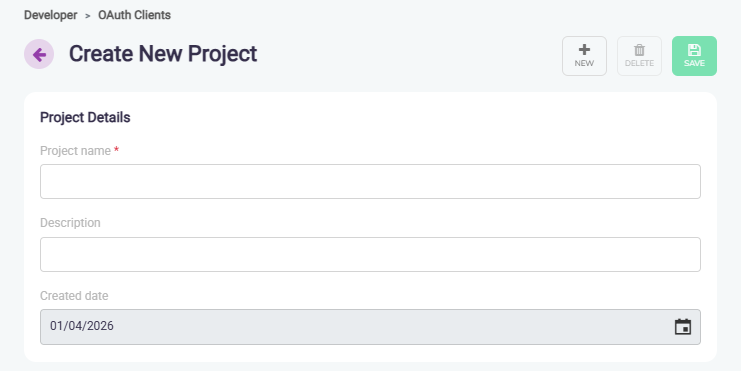

Step 1 — Create a Project
- Log in to the Xilnex Portal at portal.xilnex.com.

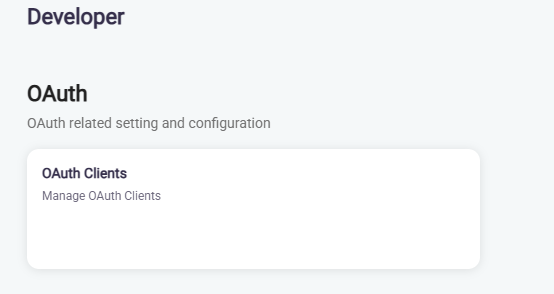

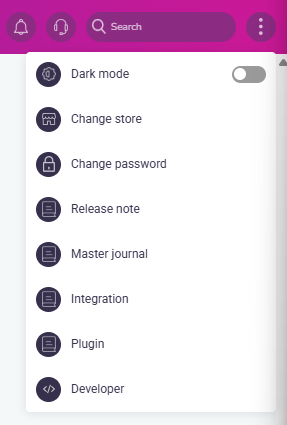

- Navigate to the Developer section.
- Select OAuth Clients under OAuth section.
- Click New to initiate a new Project.
- Complete the Project details and click Save.
| Field | Requirement | Notes |
|---|---|---|
| Project Name | Required | Used as the display identifier for the credential group |
| Description | Optional | Recommended for documentation purposes |
| Created Date | Auto-populated | Defaults to the current date; not editable |

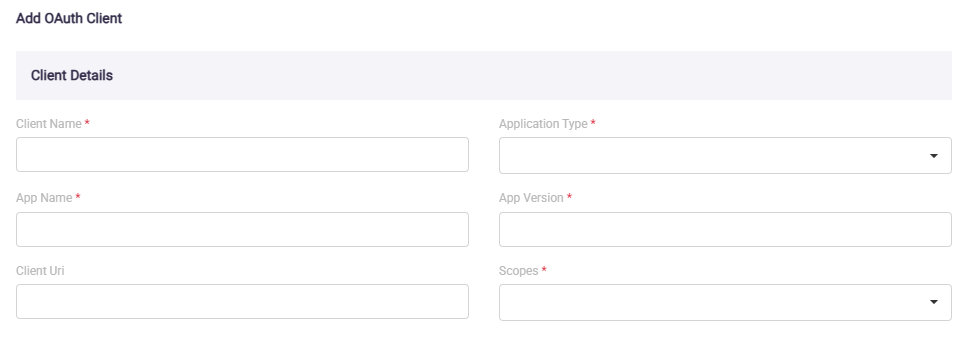

Step 2 — Add OAuth Client to the Project
- Once the Project is saved successfully, under the Project, select Add OAuth Client to create a client credential.
- Complete all required fields and click Save.
- Complete all required fields and click Save.
| Field | Description |
|---|---|
| Client Name | A unique, descriptive name for this set of credentials (between 5 to 50 characters) |
| Application Type | The category of application consuming these credentials |
| App Name | The name of the consuming application (between 5 to 50 characters) |
| App Version | The version identifier of the consuming application |
| Client URI | The application's URI (if applicable) |
| Scopes | The permission scopes required by this client |
Billing - Upon generation of a Client ID and Secret, the application fee will be charged immediately through my registered billing account.
One-Time Secret Visibility - The Client Secret will be displayed only once upon creation. I understand it cannot be retrieved again after this screen is closed. If lost, a new secret must be regenerated, which may affect existing integrations.
Confidentiality Responsibility - User is solely responsible for keeping the Client ID and Client Secret secure and confidential. Sharing or exposing these credentials to unauthorized parties is strictly prohibited.
Misuse Accountability - Any API activity conducted using these credentials is user's responsibility. Xilnex shall not be liable for unauthorized access resulting from credential mishandling.
Revocation Right - Xilnex reserves the right to revoke credentials that are found to be misused, compromised, or in violation of the platform's usage policy.
Edit Project Details
- From the OAuth Client project list, select the Project you wish to modify.
- Update the Project Name and/or Description as needed.
- Click Save to apply changes.
Delete A Project
- From the OAuth Client project list, select the Project you wish to modify.
- Select Delete.
- A confirmation will be prompt.
- Click Confirm to apply changes.
A Project cannot be deleted while it has active Client Credentials. You must remove all associated Client Credentials before the Project itself can be deleted
Edit OAuth Client Details
- Select then Project Name then select the OAuth Client you wish to modify.
- Update the details as needed.
- Click Save to apply changes.

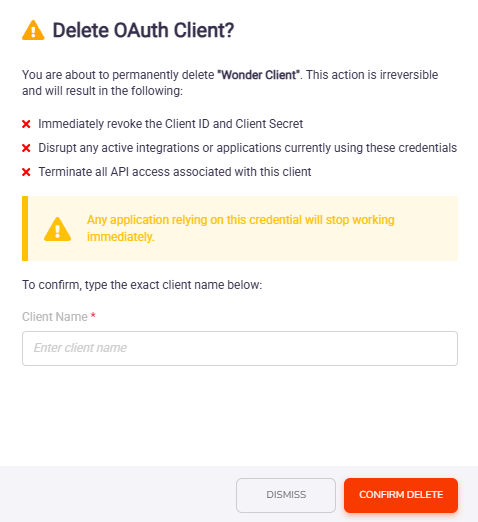

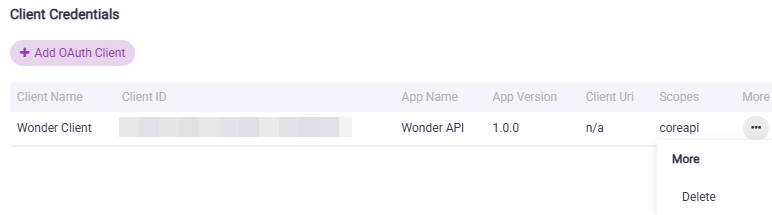

Delete OAuth Client
- Select then Project Name then find the OAuth Client you wish to modify.
- Select More.
- A confirmation message will be shown.
- Enter the Client Name to confirm the action.
- Select Confirm Delete. A message will be shown upon success.
