Basic - How to enable E-Invoice buyer in Xilnex portal

Basic - How to enable E-Invoice buyer in Xilnex portal

  1. Enable E-Invoice buyer

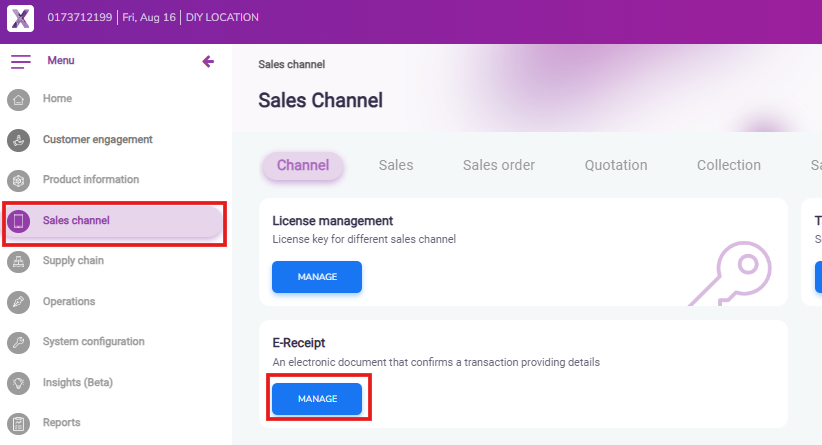

  1. Enable the E-receipt functionality

A screenshot of a computerDescription automatically generated

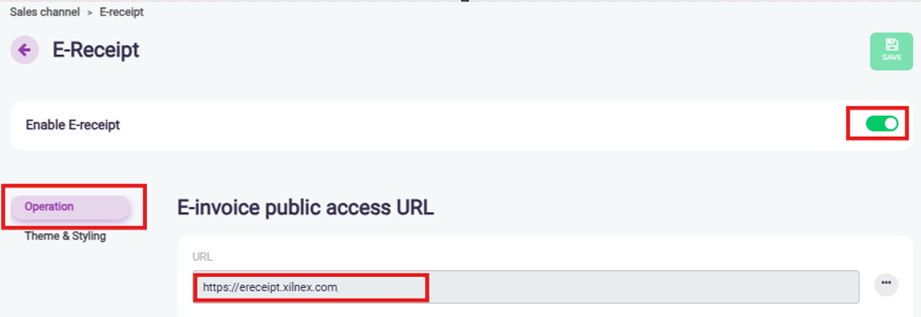

  1. Once Enabled, you will be getting the E-buyer portal link

A screenshot of a computerDescription automatically generated

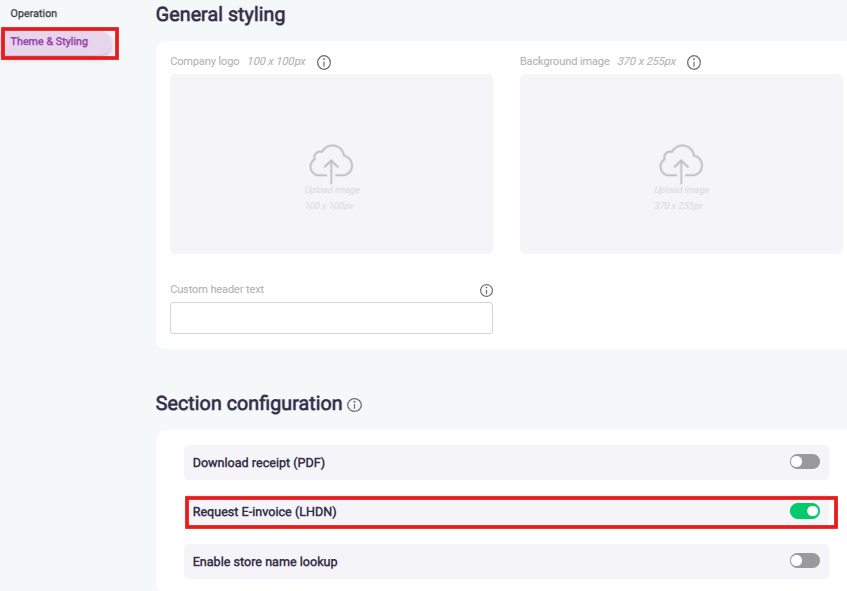

  1. Continue under Theme & Styling, enabled for the E-Invoice (LHDN)

A screenshot of a computerDescription automatically generated

You can customize the look and feel of the E-buyer portal through these Theme & Styling settings.


  1. QR code in receipt/invoice

Viewnet E-buyer Portal URL: https://ereceipt.xilnex.com/XXXX/invoice

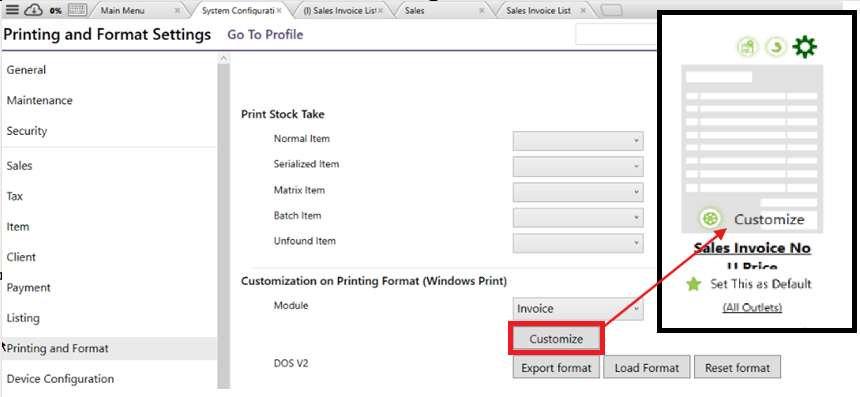

  1. Access to printing and format: Choose the module and customize

A screenshot of a computer

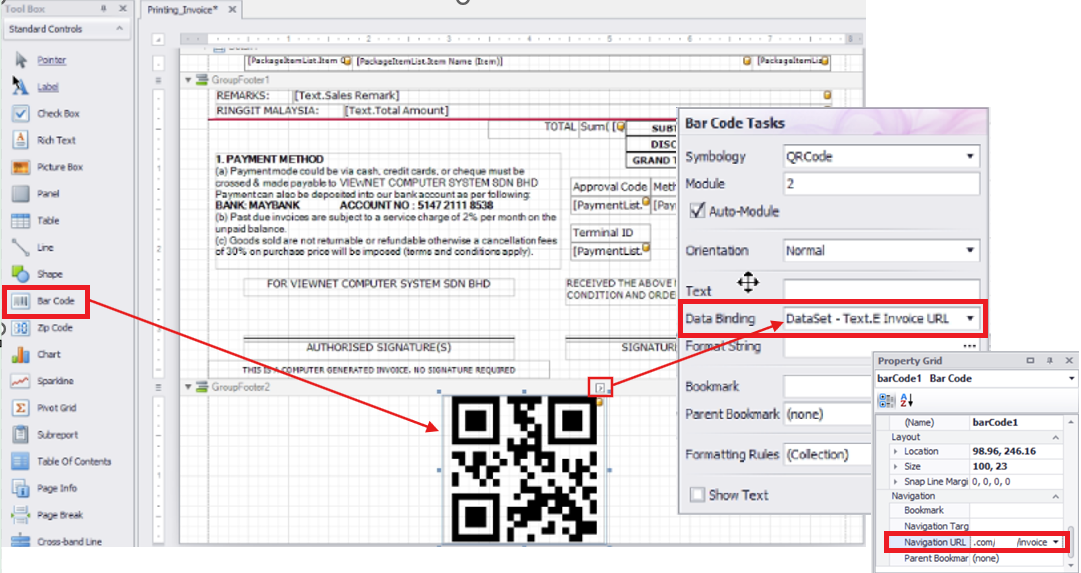

  1. Drag the Bar Code and drop it at desired place
2.1 Click the small arrow on the top right corner then select the Data Binding
2.2 Search for: Text > E invoice URL
2.3 Scroll down to find Navigation URL, input the above URL.

A screenshot of a bar codeDescription automatically generated

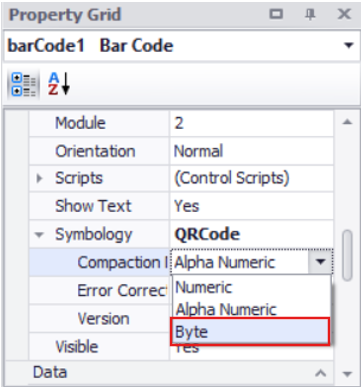

  1. At the bottom right corner Property Grid, find for the Symbology and expand it
3.1 Expand the Symbology
3.2 Change the compaction from ‘Alpha Numeric’ to ‘Byte

A screenshot of a computerDescription automatically generated

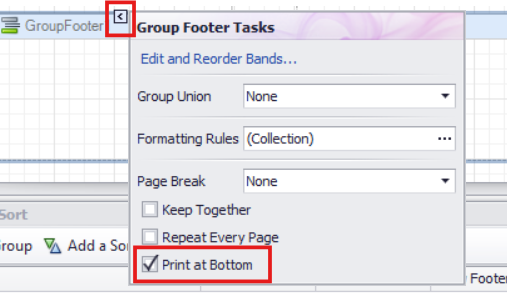

  1. If would like to prevent the QR from repetitive each page, make sure the footer which it’s in not select for ‘Repeat Every Page’ and only ‘Print at Bottom’

A screenshot of a computerDescription automatically generated

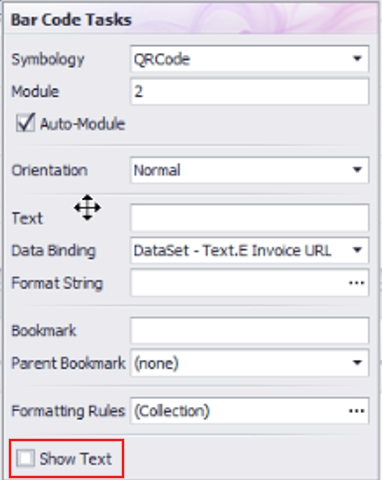

  1. Disable text if do not want to display the text of the URL

A screenshot of a computerDescription automatically generated
